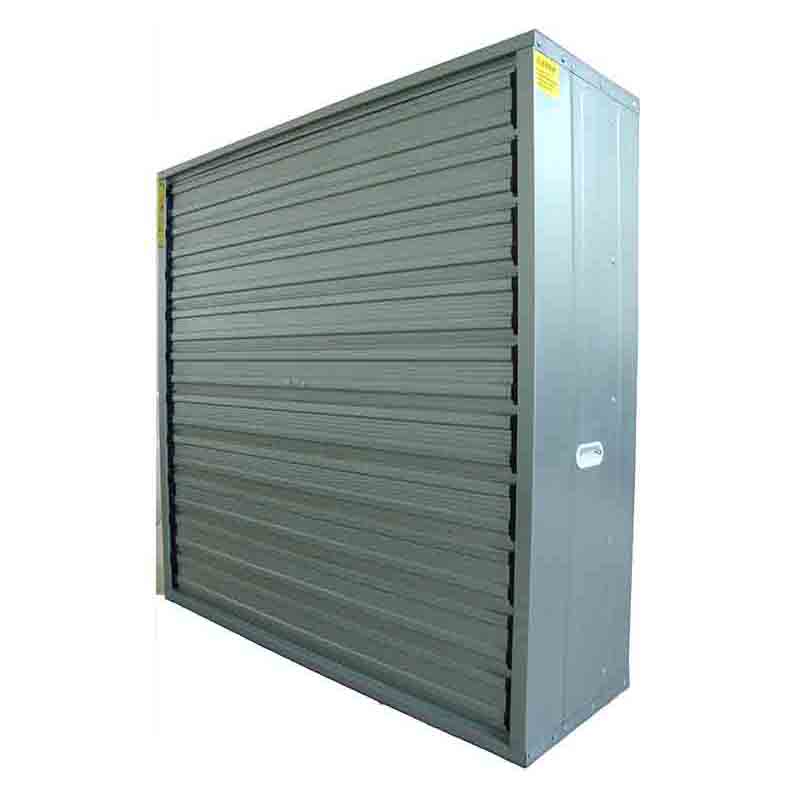

Specifications of Wincom Series Ventilation Exhaust Fans:
Model | Blade dia(mm) | Rotation Speed(r/min) | Power (Kw) | Voltage(V) | Airflow(m3/h) | Noise(db) | Size(mm) |
BF1000 | 910(36”) | 1400 | 0.75 | 380 | 22000 | ≤65 | 1000*1000*450 |
BF1380 | 1270(50”) | 1400 | 1.1 | 380 | 43000 | ≤70 | 1380*1380*450 |
BF1530 | 1400(56”) | 1400 | 1.5 | 380 | 55800 | ≤70 | 1530*1530*450 |
Details:
1.Blades: stainless steel, thickness 1.2 mm
2. Out frame material: galvanized steel,0.8 mm in thickness or stainless steel
3. Motors: energy saving motors, China Brand or SIEMENS motors, IP 55 grade
